Technical Specifications

Blinds

Acoustic Techweave Screen

Our Acoustic Screen is a high performance Trevira CS window shade fabric, delivering the optimum specification in solar optics, flame retardancy as well as a high level of sound absorption.

Also known as sheer, screen blinds excel in controlling the glare entering your room. Screen blind material blocks harmful UV rays which offer protection for your furniture and flooring. The construction of this blind material allows filtered light to pass through which allow you to maintain your outside view while providing privacy during the day. Please note however that at night with the interior lights on these blinds do not provide privacy.

//www.acousticblindsandcurtains.com.au/wp-content/uploads/2019/09/ABC-NRC-Techweave-Screen-1.png

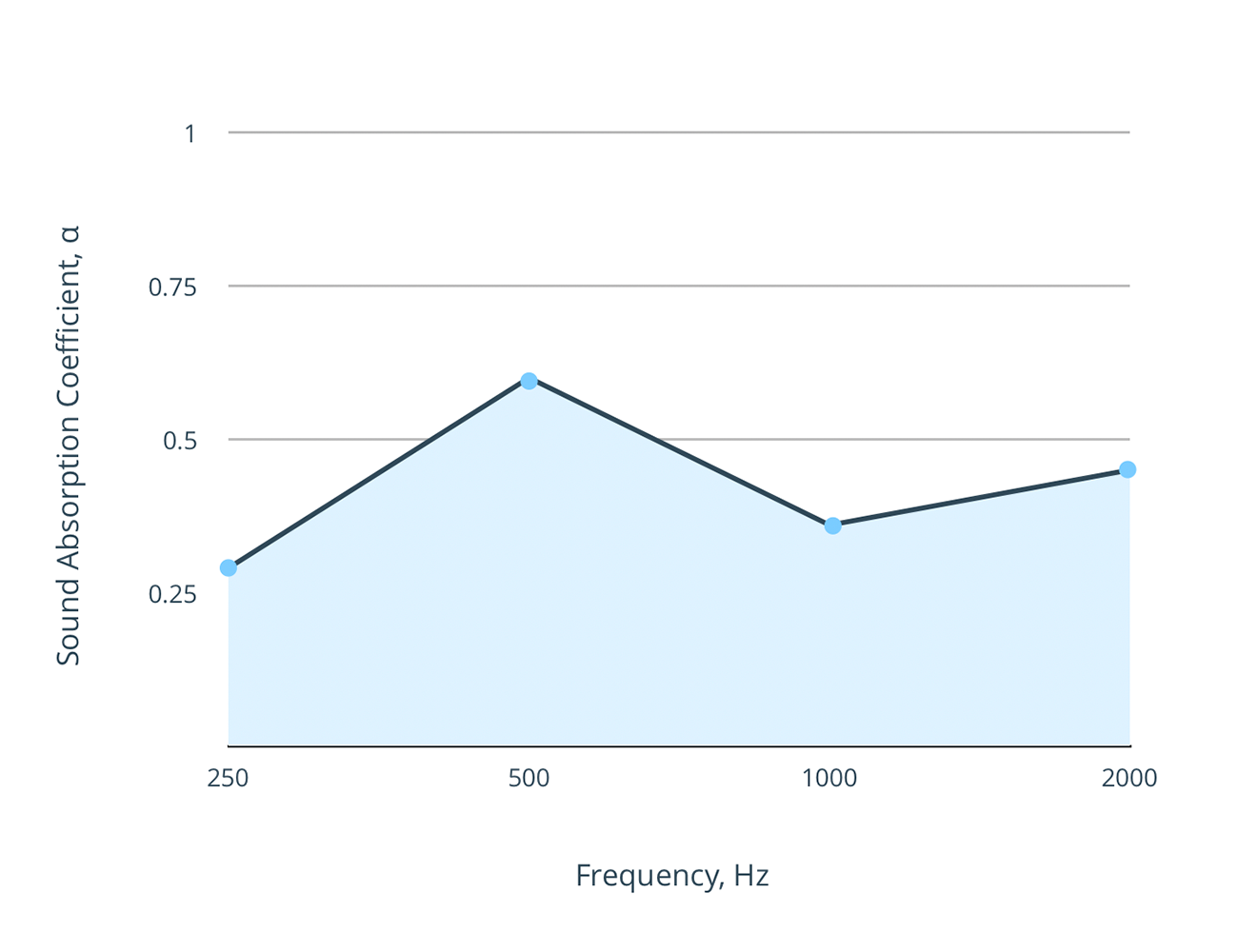

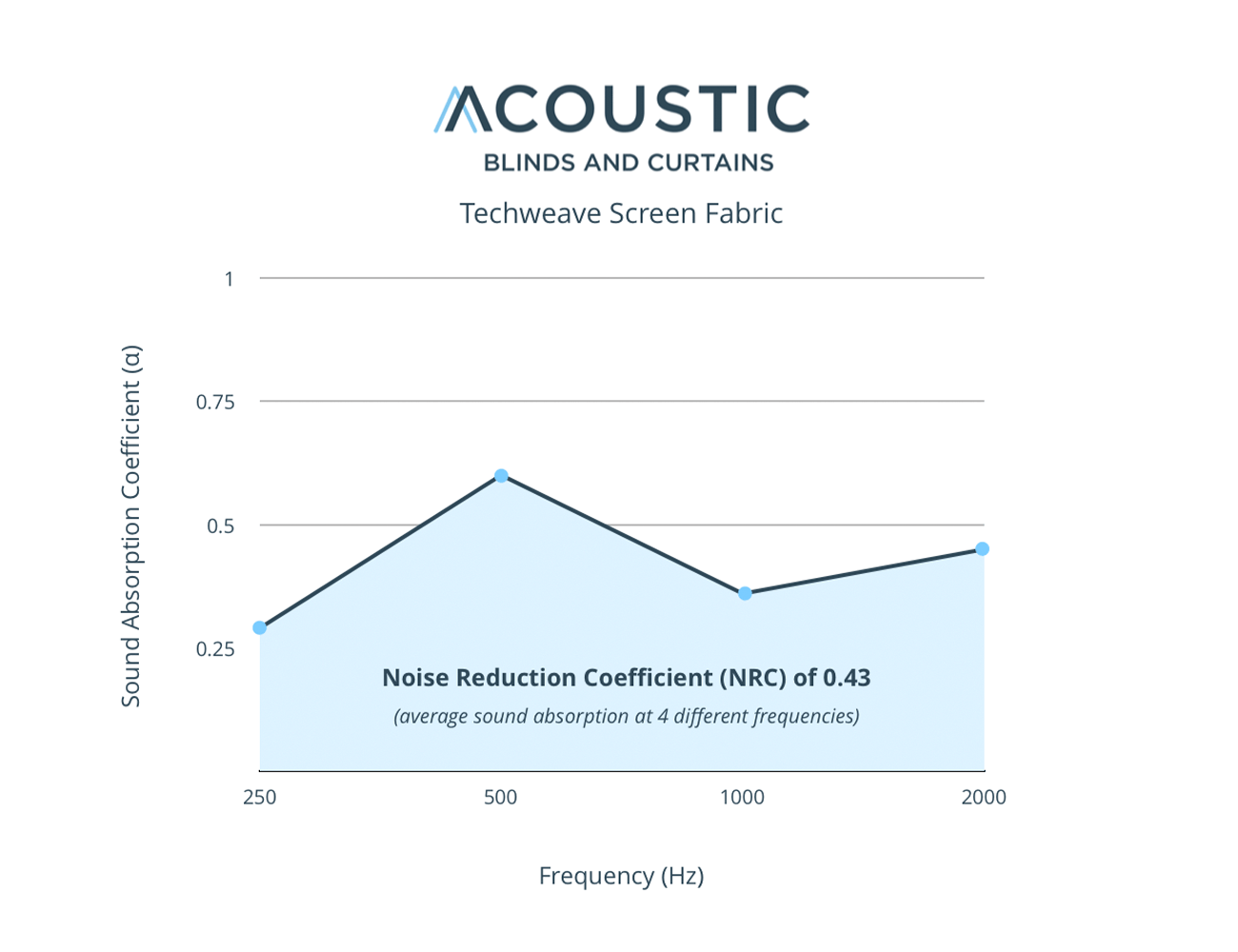

Acoustic Test Results: Sound Absorption - Noise Reduction Coefficient (NRC) 0.43
See How it Works for details
Composition: 100% Polyester Trevira CS (PVC Free)
Weight: 250GSM
Thickness: 0.50mm
Width: 3050mm
Light fastness: > 5 - 6, depending on the colour (EN ISO 105 - X12)
Moisture Shrinkage: Warp | Weft < 0.5% (DIN 53892 B2)
Rubbing Fastness: > 4 (EN ISO 105 - X12)
Tensile Strength: Warp > 140 daN/5cm | Weft > 120 naD/5cm
Fire Retardancy: AWTA AS1530.3 / French Standard M1
Bracket Type: Easy fit universal brackets suitable for top, side and face fitting
Blind Component: All blinds made with Acmeda RB08 mechanisms
Care Instructions: Brush off, vacuum

Acoustic Cord Light Filtering

A tightly woven material which provides heat and UV control whilst still allowing a high level of filtered light to enter the room room.

Light filtering material will provide full privacy both day and night while filtering light into your room. Ideal for kitchens, living areas, south facing windows or when looking to block a view.

//www.acousticblindsandcurtains.com.au/wp-content/uploads/2019/09/NRC-ABC-Cord-Light-Filtering-2.png

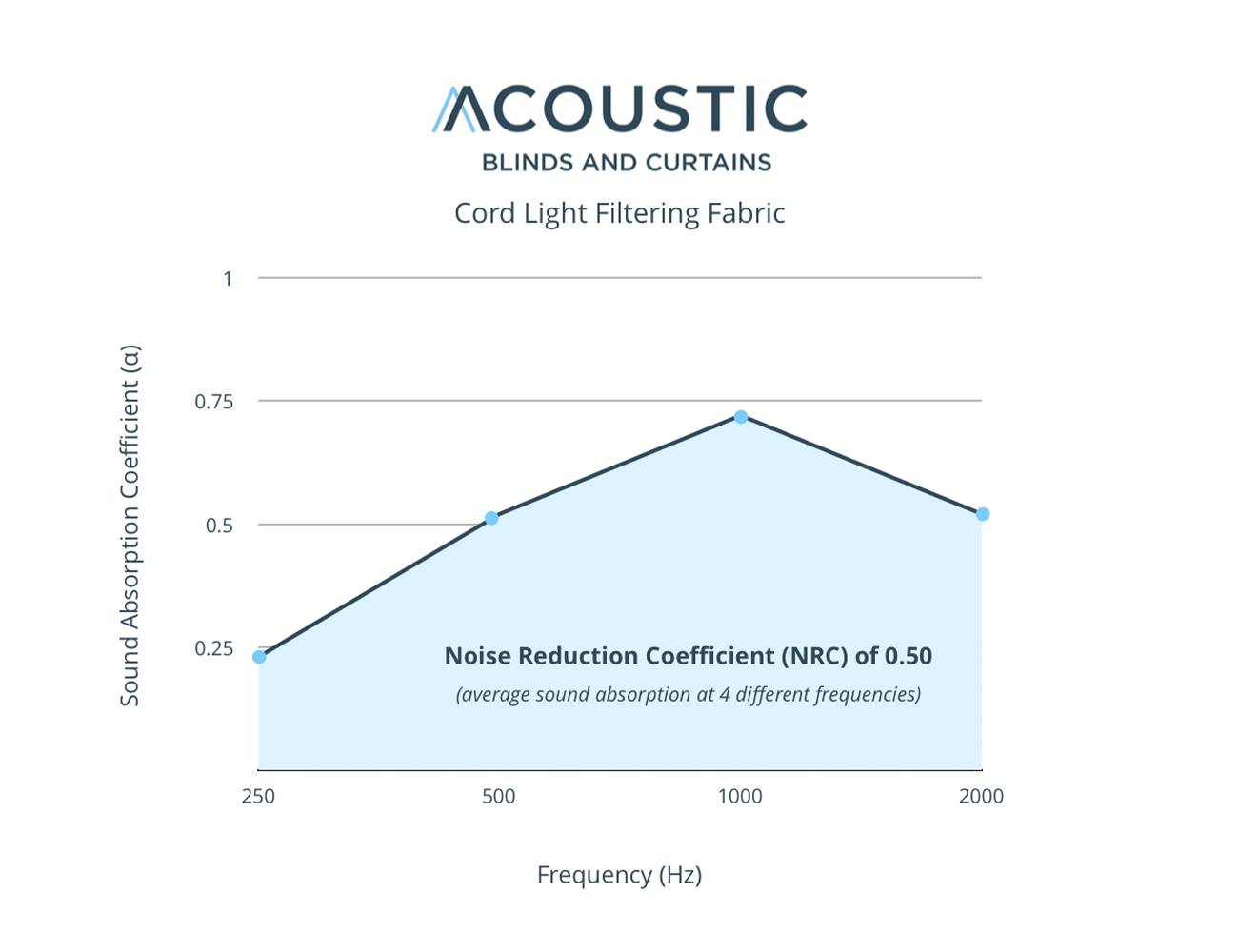

Acoustic Test Results: Sound Absorption - Noise Reduction Coefficient (NRC) 0.50
See How it Works for details
Composition: 100% Polyester (PVC Free) with acrylic coating
Weight: 325GSM
Thickness: 0.53mm
Width: 3000mm
Light Fastness: 5 (EN ISO 105-B02:2014)
Bracket Type: Easy fit universal brackets suitable for top, side and face fitting
Blind Component: All blinds made with Acmeda RB08 mechanisms
Cleaning: Surface dust should be removed with duster or soft cloth. To spot clean a particular area, use warm soapy water or mild detergent and wipe with a damp white cloth. Never use abrasive products or solvent/industrial based cleaners. Do not roll up fabric which is damp.


Curtains

Acoustic Wool Light Filtering

Our Acoustic wool curtain fabric has proven to be a popular option for both commercial and residential projects alike. Aesthetically, the fabric boasts the traditional woollen texture and overall woollen appearance whilst performing exceedingly well from an acoustic absorption point of view.

This product allows a significant amount of light control and privacy making it suitable for both residential and commercial applications. In saying that, if used in a bedroom where total privacy and light control is required, you can look to add the acoustic lining product to achieve a dim out option.

//www.acousticblindsandcurtains.com.au/wp-content/uploads/2019/09/NRC-ABC-Wool-Light-Filtering.png

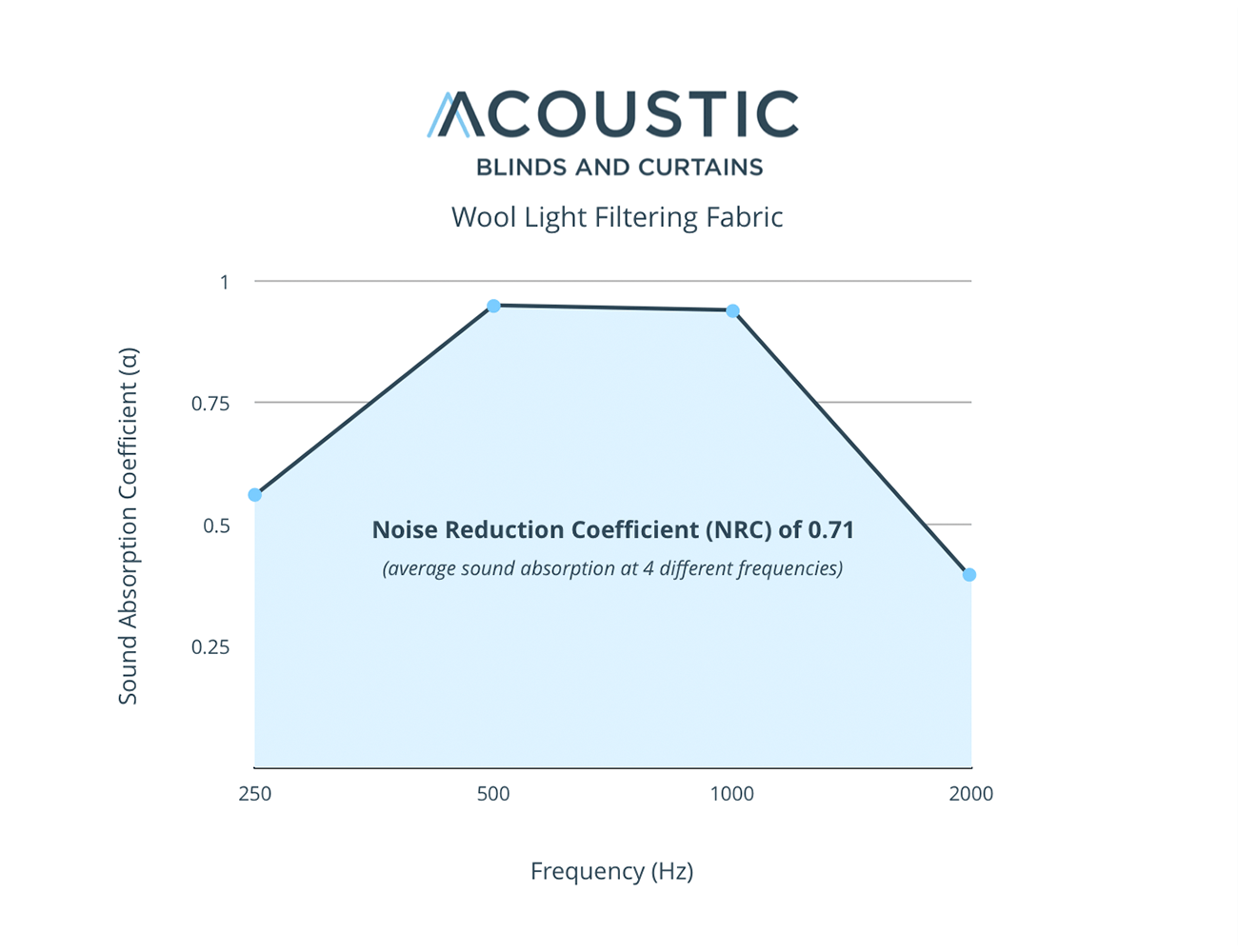

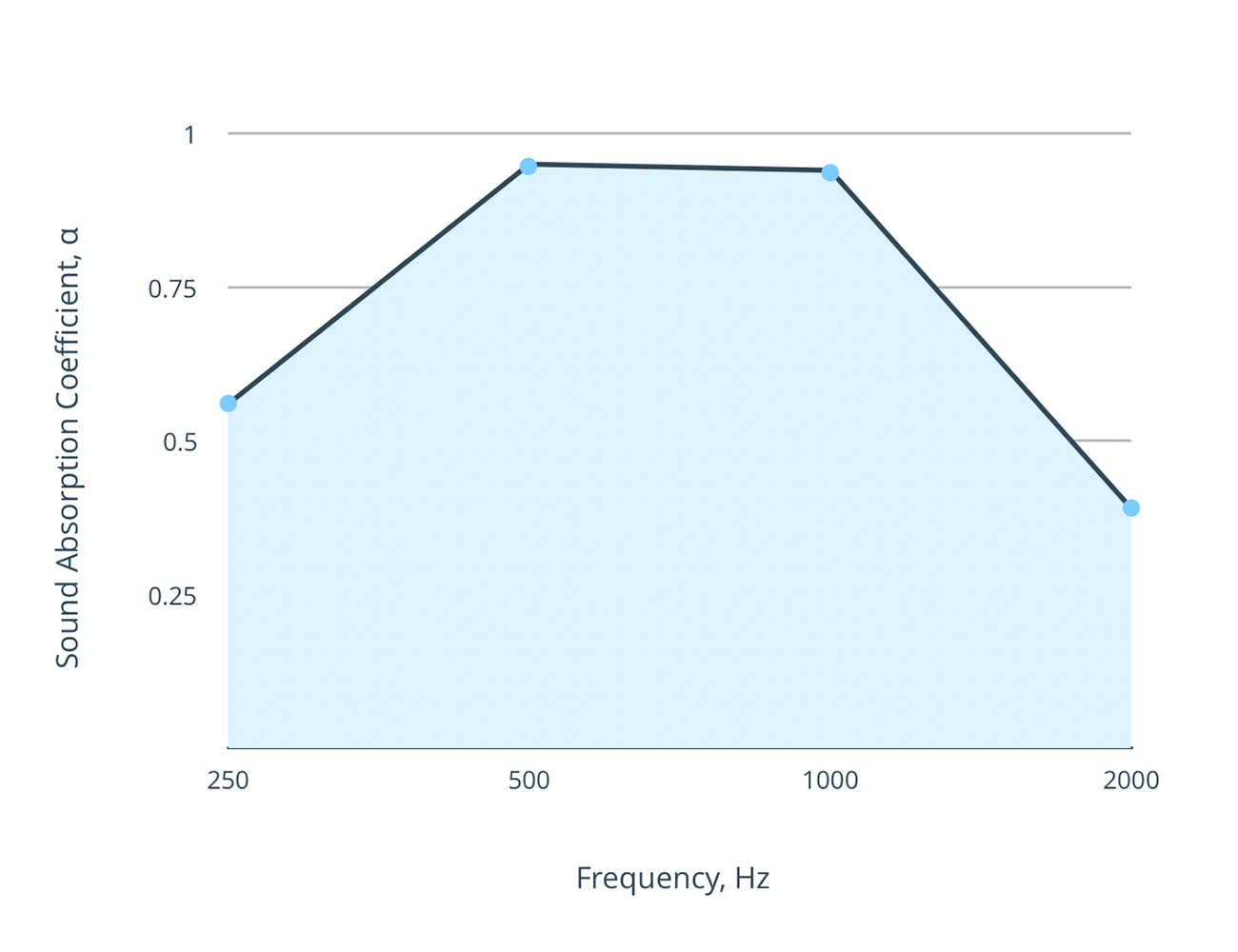

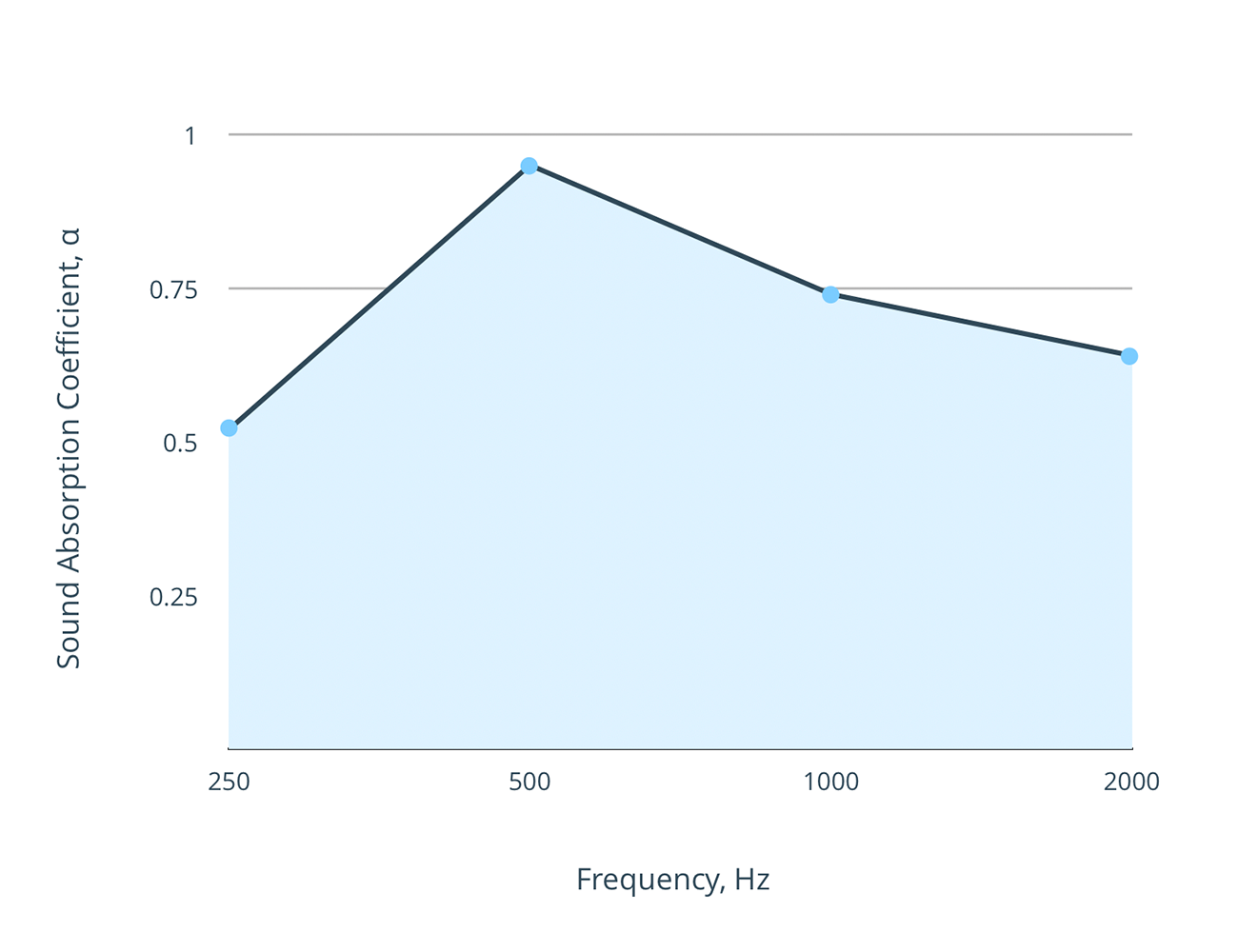

Acoustic Test Results: Sound Absorption - Noise Reduction Coefficient (NRC) 0.71
See How it Works for details
Composition: 100% Wool
Weight: 470g/m2 +/- 8%
Width: 1800mm +/- 2%
Light fastness: 6-7 (AS 2001.4.21)
Abrasion Tested To AS 1530.3  AS 1530.2  AS 3837 Group 2  ISO 10534.2
Fire Ratings: Test Method: AS 1530.3 Range 0-20 Ignitability 13, Test Method: AS 3837 BCA Group Classification 2
Care Instructions: Vacuum regularly using low suction. For spot cleaning gently mop liquid or brush soil from fabric, do not scrub.

Acoustic Velvet Light Filtering

Our Acoustic velvet light filter product is the ideal solution for spatial acoustics design. This fabric  not only permits stylish interior design, but it also replaces traditional sound absorbers at the same time.

This product allows a significant amount of light control and privacy making it suitable for both residential and commercial applications. In saying that, if used in a bedroom where total privacy and light control is required, you can look to add the acoustic lining product to achieve a dim out option.

//www.acousticblindsandcurtains.com.au/wp-content/uploads/2019/09/NRC-ABC-Velvet-Light-Filtering.png

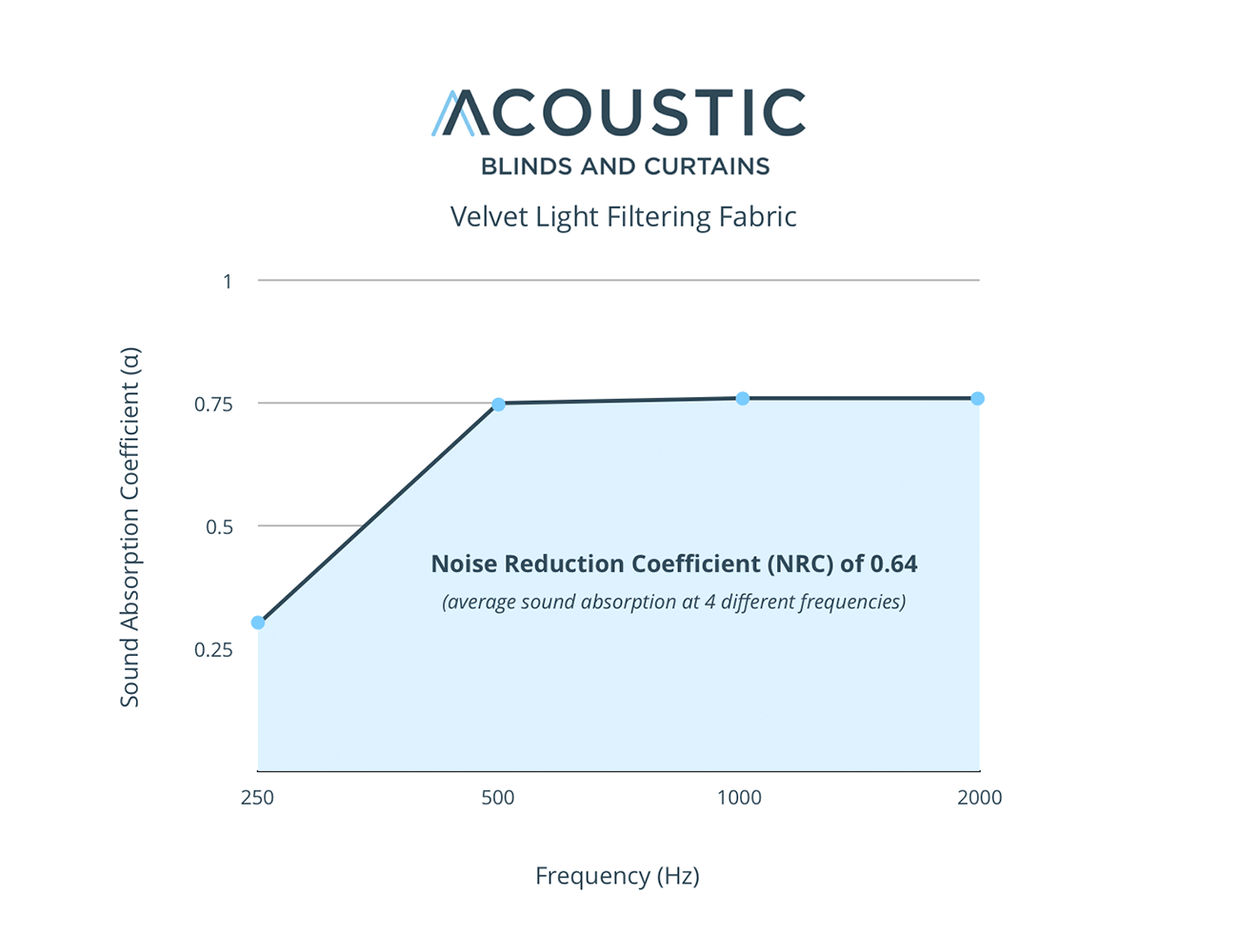

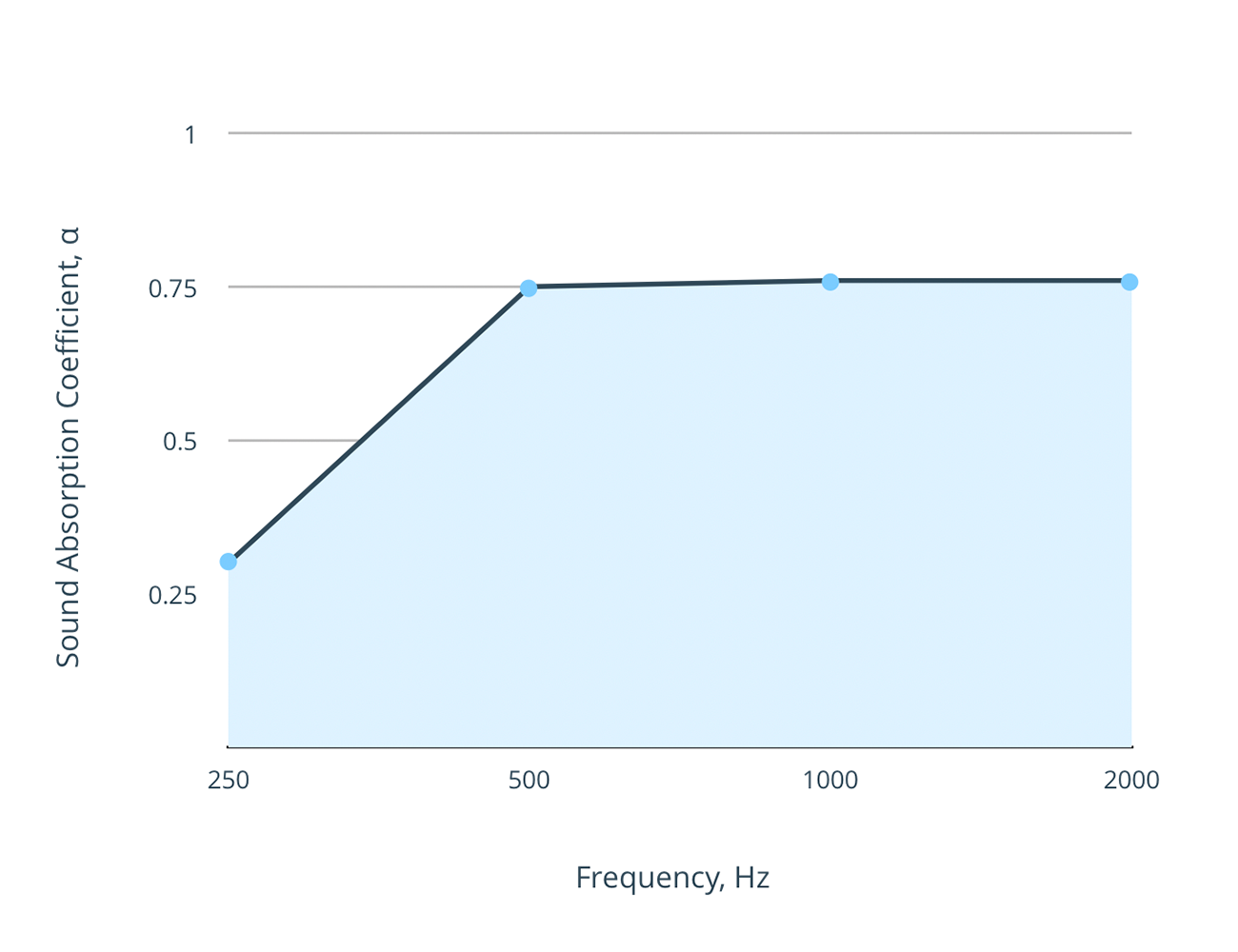

Acoustic Test Results: Sound Absorption - Noise Reduction Coefficient (NRC) 0.64
See How it Works for details
Composition: 100% Polyester
Weight: 370GSM
Width: 1400mm
Color Fastness to Rubbing: ≥ 6 (ISO 105/B02)
Abrasion (Martindale): ≥ 4 (ISO 105/C01)
Sweat Resistance: Acid/Alk ≥ 3–4  (ISO 105/E04)
Tensile strength: Warp ≥ 1100N & Weft ≥ 950N  (DIN EN ISO 13934-1)
Breaking Elongation: Warp ≥ 20% & Weft ≥ 30% (DIN EN ISO 13934-1)
Seam Slippage: Warp ≤ 2mm & Weft ≤ 1 (DIN EN ISO 13936-2)
Fabric Construction: Non-fading, light-fast, easy-care and inherently flame-retardant double velours. The fabric is harder wearing due to the multiple bond of pile yarn.

Acoustic Wool Dimout (with acoustic dimout backing)

With an acoustic backing applied to our Wool Light Filtering product, the curtain fabric develops Dimout properties and has proven to be a popular option for both commercial and residential projects alike. Aesthetically, the fabric boasts the traditional woollen texture and overall woollen appearance whilst performing exceedingly well from an acoustic absorption point of view.

Composition: 100% Wool
Weight: 470g/m2 +/- 8%
Width: 1800mm +/- 2%
Light fastness: 6-7 (AS 2001.4.21)
Abrasion Tested To AS 1530.3  AS 1530.2  AS 3837 Group 2  ISO 10534.2
Fire Ratings: Test Method: AS 1530.3 Range 0-20 Ignitability 13, Test Method: AS 3837 BCA Group Classification 2
Care Instructions: Vacuum regularly using low suction. For spot cleaning gently mop liquid or brush soil from fabric, do not scrub.

Acoustic Velvet Dimout (with acoustic dimout backing)

For situations that require more light control and privacy, our acoustic velvet dimout is the ideal solution for residential & hotel acoustic design. This fabric not only permits stylish interior design, but it also replaces traditional sound absorbers at the same time.

Composition: 100% Polyester
Weight: 370GSM
Width: 1400mm
Color Fastness to Rubbing: ≥ 6 (ISO 105/B02)
Abrasion (Martindale): ≥ 4 (ISO 105/C01)
Sweat Resistance: Acid/Alk ≥ 3–4  (ISO 105/E04)
Tensile strength: Warp ≥ 1100N & Weft ≥ 950N  (DIN EN ISO 13934-1)
Breaking Elongation: Warp ≥ 20% & Weft ≥ 30% (DIN EN ISO 13934-1)
Seam Slippage: Warp ≤ 2mm & Weft ≤ 1 (DIN EN ISO 13936-2)
Fabric Construction: Non-fading, light-fast, easy-care and inherently flame-retardant double velours. The fabric is harder wearing due to the multiple bond of pile yarn.
